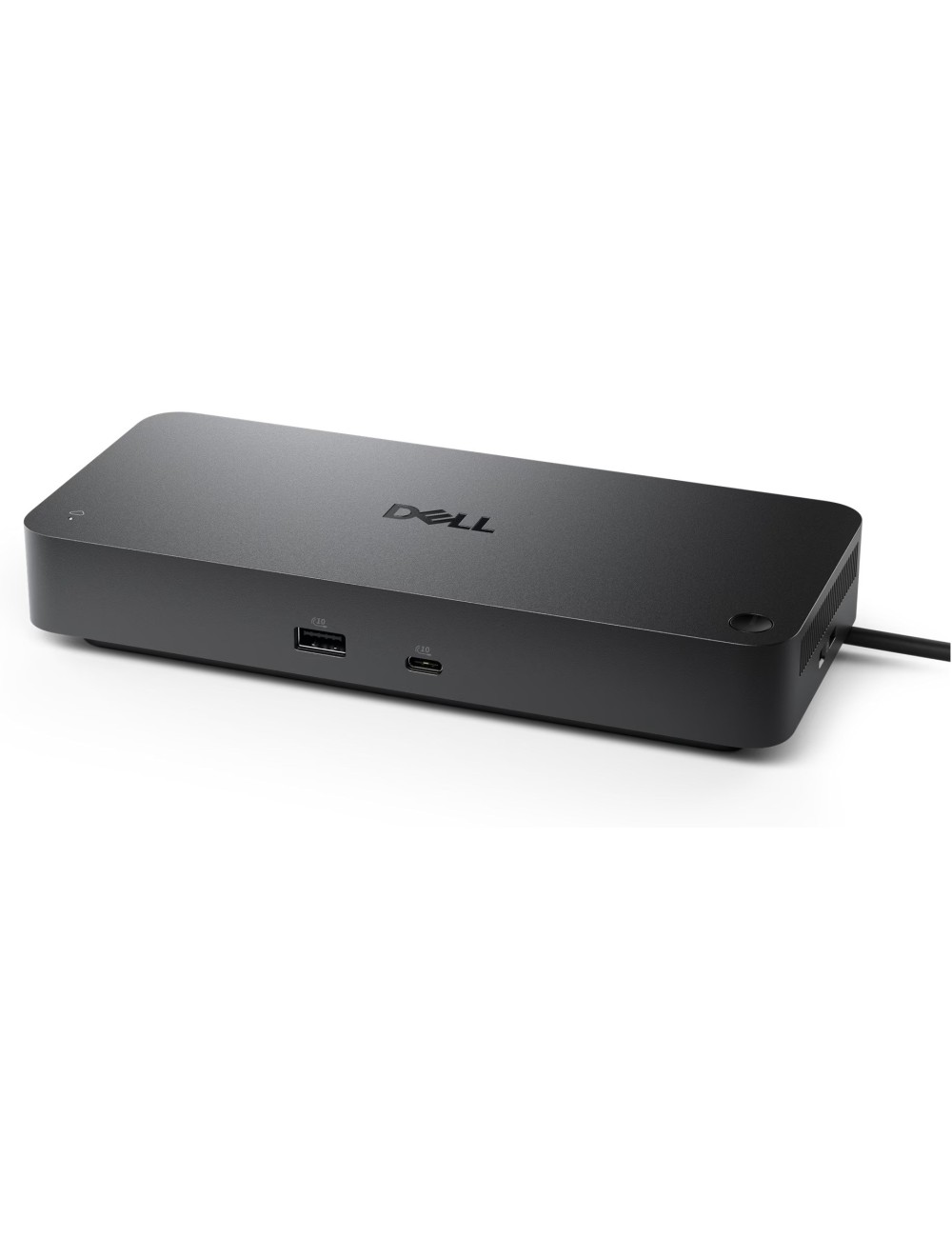

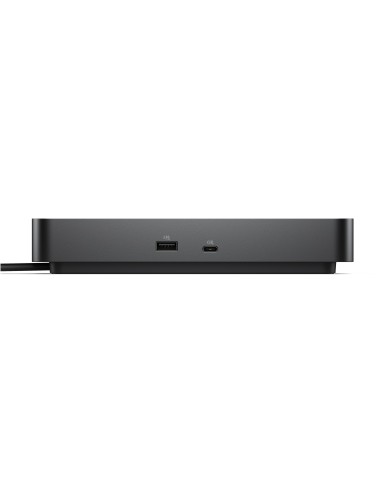

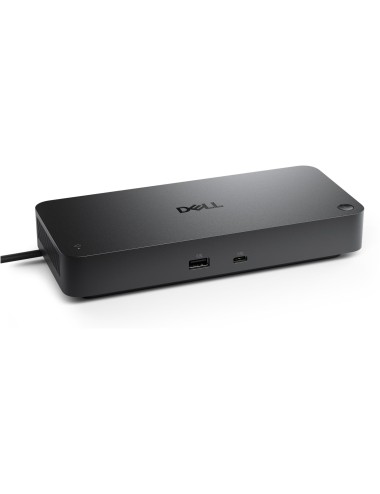

Dell Pro Thunderbolt 5 Smart Dock SD25TB5, 3 Years Advanced Exchange Service

Tech Specs

Connectivity Technology Wired

Device Supported Notebook

Cable Length 32"

Features

• Power Delivery Pass-through
• LED Power Indicator

Management Features

• WLAN to LAN Switch
• Port Disablement
• Dell Command Update (DCU)
• Intel AMT over Thunderbolt with select Intel vPro PCs
• MAC Address Pass-through
• Kernel Direct Memory Access (DMA) Protection
• PXE Boot
• Wake-on-LAN
• Dock Power Button Sync

Number of Displays Supported 4

Screen Mode Supported

• QHD @ 60Hz
• WQHD @ 60Hz
• 4K @ 60Hz
• 5K @ 60Hz
• 6K @ 60Hz
• 8K @ 60Hz
• 4K @ 120Hz

Supported Resolutions

• 2560 x 1440
• 3440 x 1440
• 3840 x 2160
• 5120 x 2160
• 6144 x 3456
• 7680 x 4320

Maximum Data Transfer Rate 1.25 GB/s

Security Slot Type

• Noble Wedge Security Slot
• Kensington Security Slot

Power Delivery Details

• 4 x USB-A 3.2 Gen 2 (4.5W each)
• 1 x USB-C 3.2 Gen 2 (15W)
• 1 x USB-C Multi-function DisplayPort (7.5W)
• 2 x Thunderbolt 5 (15W each)
• All deliver power with or without PC

Power Delivery

• 300W (Dell Systems)
• 240W (non-Dell Systems)

Video Resolution Details

• 4K - 120 Hz (Triple Display)
• QHD - 60 Hz (Quad Display)
• 4K - 120 Hz (Quad Display)
• WQHD - 60 Hz (Triple Display)
• 4K - 60 Hz (Dual Display)
• 5K - 60 Hz (Single Display)
• 4K - 60 Hz (Quad Display)
• 4K - 60 Hz (Triple Display)
• 8K - 60 Hz (Single Display)
• 6K - 60 Hz (Dual Display)

Network & Communication

Ethernet Technology 2.5 Gigabit Ethernet

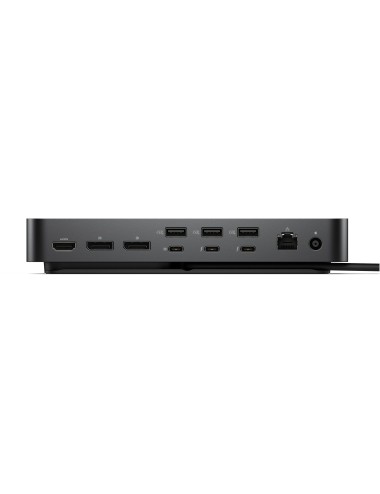

Interfaces/Ports

Host Interface Thunderbolt 5

Total Number of USB Ports 6

Number of USB 3.2 Gen 2 Type-A Ports 4

Number of USB Type-A Ports 4

Number of USB Type-C Ports 2

USB Type-A Yes

USB Type-C Yes

USB Type-C Detail

1 x USB-C 3.2 Gen 2 Multi-function DisplayPort 2.1, 1 x USB-C 3.2 Gen 2 (10 Gbps)

Network (RJ-45) Yes

Number of DisplayPorts 2

DisplayPort Yes

DisplayPort Version 2.1

Number of HDMI Ports 1

HDMI Yes

HDMI Version 2.1

Thunderbolt Yes

Thunderbolt Ports Quantity 2

Software

Operating System Supported

• ChromeOS 141
• Red Hat Enterprise Linux 9.7
• macOS
• Ubuntu 24.04
• Windows 11
• Windows 10

Power Description

Maximum Power Supply Wattage 330 W

Power Source Type Power Adapter

Physical Characteristics

Height 8.07"

Width 3.54"

Depth 1.39"

Weight (Approximate) 1.39 lb
